CamFi ZF Remote Zoom & Focus Controller

The most powerful remote zoom and focus device

Remote control zooming and focusing via mobile app

It also supports “live view” preview for composing. It is able to trigger the photo capturing and start/stop video recording remotely.

Super easy for Focus stacking

Just set the nearest focus point and the farthest focus point by the app. It can move the focus from near to far and automatically take a series of photos in the movement. Manual lenses and some cameras that use third party lens can work with this device as well.

Making amazing Hyperlapse effect

Set the two points for zooming by the app. After tapping the start button, it will control the camera to “shoot-move-shoot” automatically.

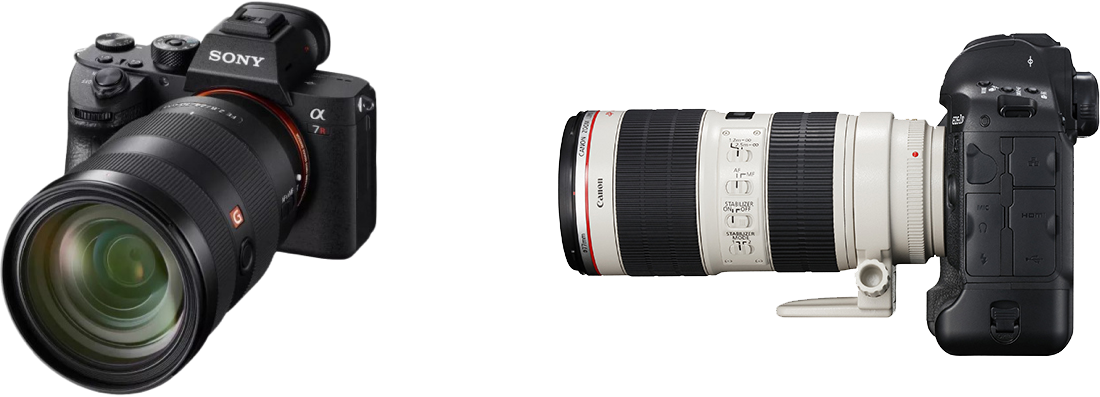

Available for different camera lenses

Whether it is A7M3 + 24-70mm combination, or 1Dx ii + 16-400mm, you can easily control it. Wide-angle, telephoto, macro, automatic lens, manual lens, all can be used.

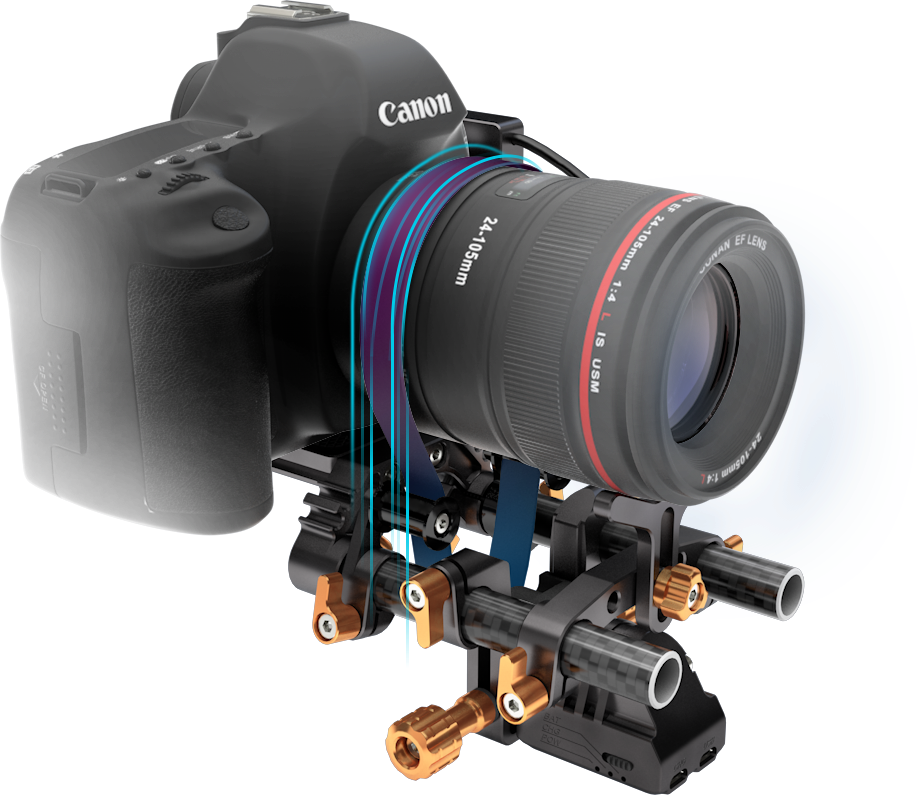

High precision stepper motor, strong torque

CamFi ZF adopts high-precsion stepper motor which has full torque, can easily drive large zoom lenses.

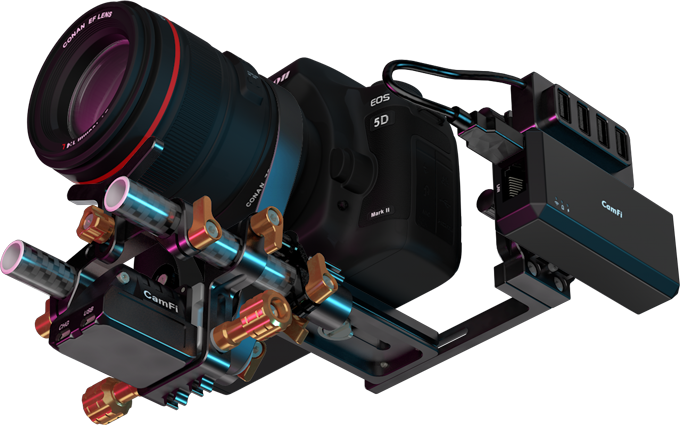

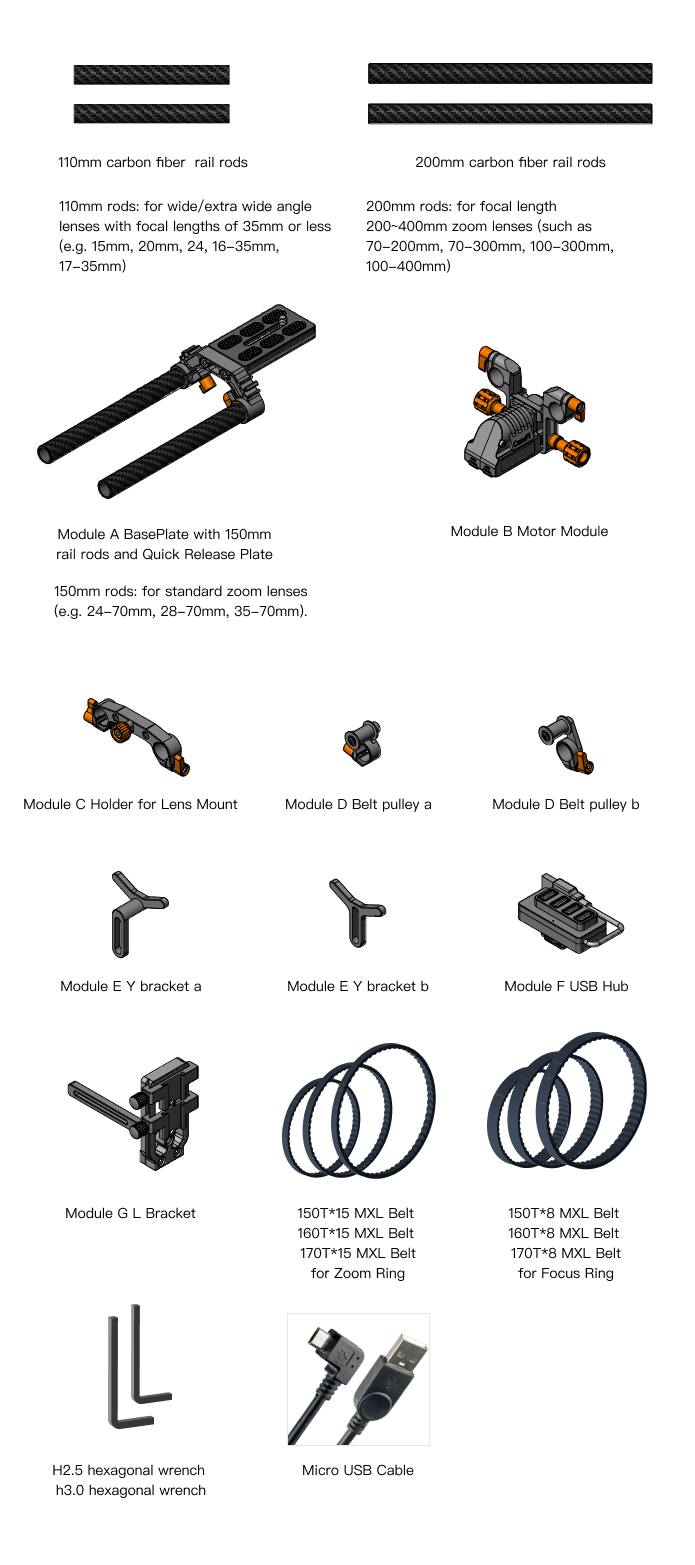

Easy assembly

CamFi ZF's modular design makes assembly easier

FAQ

Can it use for changing the focus of the cameras which do not support auto focus with CamFi, such as Sony a7r, a7r ii?
Yes, it can use with these cameras for remote change the focus and focus stacking.
Can it use for follow focus?
Sorry, it is designed for photography. It is not suitable for follow focus.
Do I have to use a CamFi to work with CamFi ZF?
Yes. CamFi ZF must work with CamFi wireless controller. CamFi CF101, CF102, CamFi Pro, CamFi Pro Plus are all supported.

Specification

Motor	Nominal Voltage	DC 12 V
Motor	Step Angle	18°
Battery	Nominal Voltage	DC 3.7 V
	Battery	500 mAH
	Operation Temperature	Max：55 ℃ Min：-10 ℃
	Battery Runtime	≈ 3 H
	Standby Time	25 H
Wi-Fi	Wi-Fi Distance*	≈ 60m / 196ft
Product Standard	Package Size (mm)	Max：200166.5140 Min：210152140
Product Standard	Weight (g)	≈ 520
* Wi-Fi control needs use CamFi wireless camera controller
